Oxygen Concentrator

Oxygen generator: Based on the adsorption performance of the molecular sieve and the physical principles, it separates nitrogen from oxygen in the air using a large displacement oilless compressor as the power, and finally obtaining high-concentration oxygen. This type of oxygen generator produces oxygen rapidly with high oxygen concentration, which is suitable for oxygen therapy and oxygen health care in various populations. Camshield can provide customers with household oxygen generators, medical oxygen generators, and industrial oxygen generators.

Send Inquiry

Product Features:

Household oxygen generator: Because of low oxygen concentration, general household oxygen generators can only be used for daily health care and oxygen therapy. The oxygen concentration of the household oxygen generator will change obviously with the change in gas flow.

Medical oxygen generator: The oxygen concentration of the medical oxygen generator is nonadjustable. For example, the oxygen concentration of the medical oxygen generator is unchanged at 90%, and no matter what the oxygen flow is, the oxygen concentration of the oxygen generator is 90%.

Industrial oxygen generator: An industrial oxygen generator is generally large in volume and used for large-scale centralized oxygen production. It requires professional installation and maintenance, and the oxygen concentration can be adjusted according to the needs.

Product Parameters:

Selected products(for more product models, please contact us):

personal protective equipment oxygen concentrator8

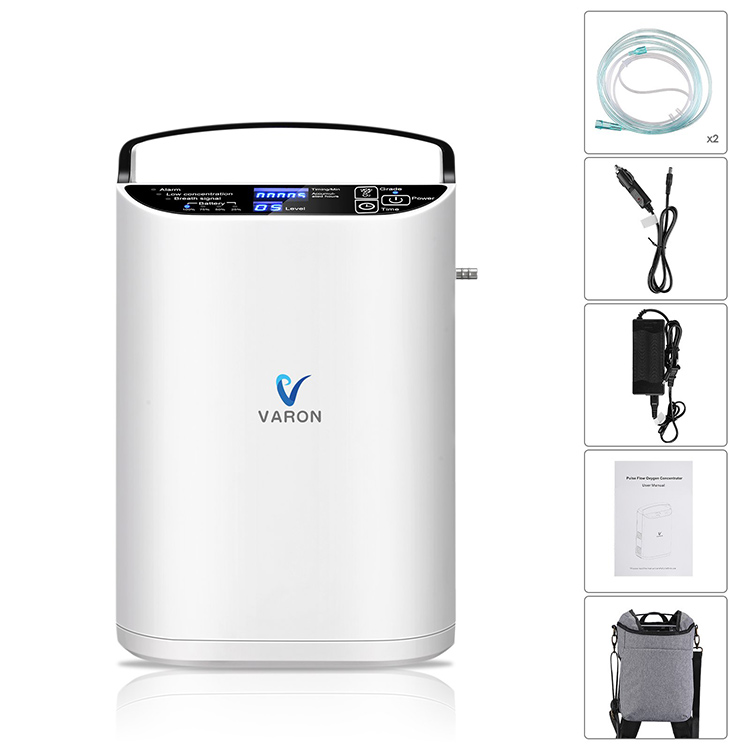

Oxygen Concentrator for home use Specification:
Delivery Rate: 0.5-1LPM
Maximum Flow: 1LPM Voltage/Frequency:220V/50Hz

Power Consumption: 200W(AVER)

Purity: 93%±3%@1L/min

Noise Level: <60 dBA
Net Weight: 7.6kg   Dimensions(L*W*H): 206x373x225mm

Accessories:
2 x filters, 1 x Humidifier cup, 1 x 2m Nasal oxygen tube

Packing Dimension:

1 unit per carton; Carton size: 410*244*372mm; G.W.: 12.5KGS

Certificate: ISO, CE

personal protective equipment oxygen concentrator9

Oxygen Concentrator for Medical Use Specification
Delivery Rate: 0.5-5 LPM
Maximum Flow: 5LPM Voltage/Frequency:220V/50Hz

Power Consumption: 260W(AVER)

Purity: 93%±3%@5L/min

Noise Level: <60 dBA
Net Weight: 15.1kg

Dimensions(L*W*H): 340x295x525mm

Accessories:
2 x filters, 1 x Humidifier cup, 1 x 2m Nasal oxygen tube

Packaging carton: 413x373x617mm per unit into a master carton N.W.: 15.1KGS, G.W.: 17.50KGS

Certificate: ISO, CE

personal protective equipment oxygen concentrator10

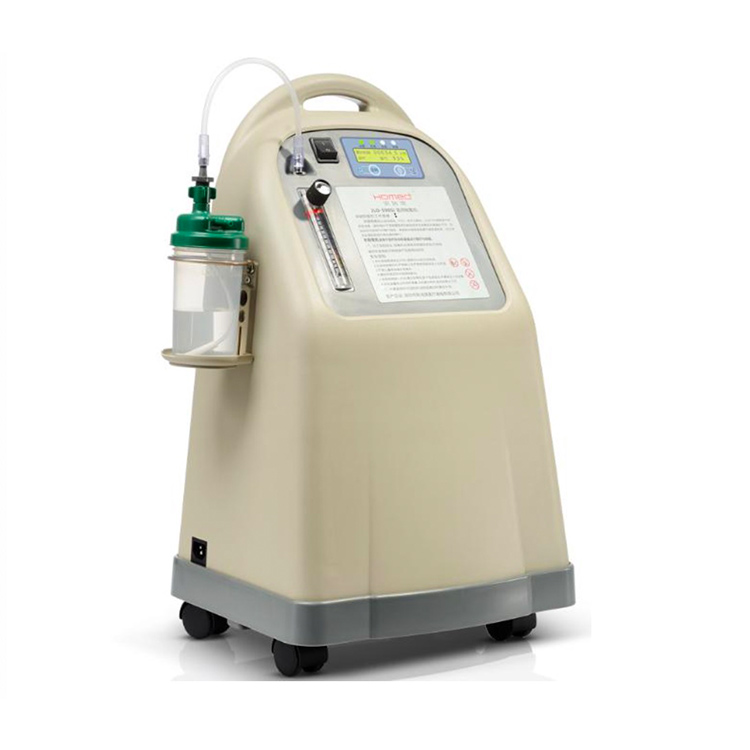

Oxygen Concentrator for Medical Use Specification
  Model no. :JLO-1090Si

Product name :Medical Oxygen Concentrator

Power :AC220V 50Hz

Power consumption: ≤ 600W

Pressure: 5-10 PSi

Flow :10±1 LPM

Concentration :93% ±3%

Flow adjustable scope :(0~10) L/ min. adjust, allow the tolanrance±10%

Noise :≤60dBA

Size: 460X351X594mm

Weight: 31kg

Certificate: ISO, CE

personal protective equipment oxygen concentrator7

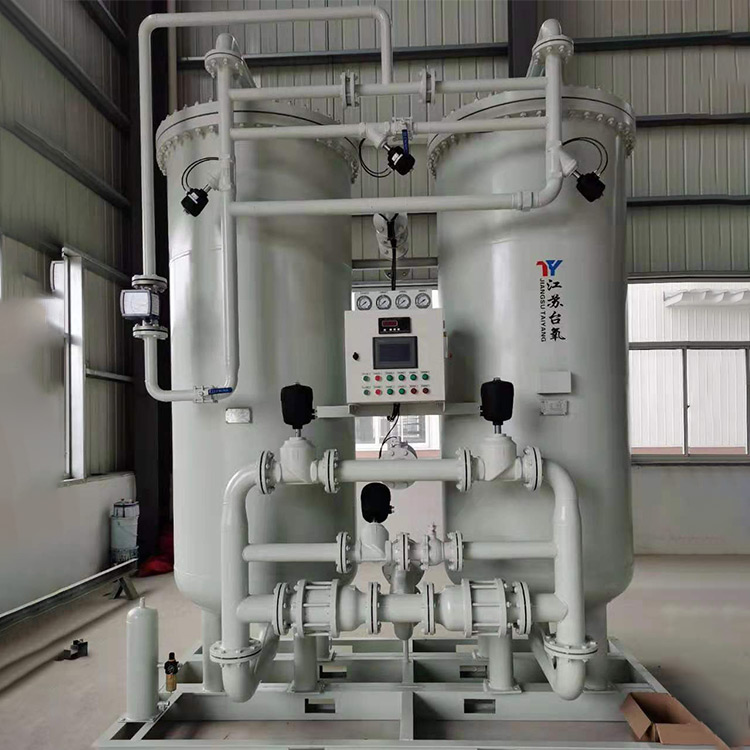

Industry Oxygen Concentrator(Product capacity can be customize) Specification
  NO:SLTO—30

Oxygen flow :30Nm3/h

Oxygen purity :93%±2%(VOL)

Air dew point :   ≤-40℃

outlet pressure :0.3-1.0 Mpa

specific air consumption :      >6Nm3/min/7-8KG

description of design:

The pressure of oxygen outlet of PSA oxygen generator is 0.3mpa, and the pressure required by oxygen supercharger shall be configured

Certificate: EN ISO 13485

Application and After-Sales Service:

Home oxygen concentrator: Intended to improve the health of individuals in the sub-healthy condition, including sleep-deprived, exhausted office workers, stressed-out students, brain workers, pregnant women, and so on.

Medical oxygen concentrator (5L): Delivers 5 liters per minute with an oxygen concentration up to 93%, suitable for patients with respiratory conditions such as chronic obstructive pulmonary disease (COPD), pulmonary fibrosis, pneumectomy, lung cancer, pneumoconiosis, and silicosis.

Medical oxygen concentrator (10L): Delivers 10 liters per minute with an oxygen concentration up to 95%, suitable for patients with severe hypoxia and those in need of mechanical ventilation due to inability to sustain spontaneous breathing.

Industrial oxygen concentrator: Designed for a broad spectrum of applications, such as sewage treatment, smelting, petrochemical processing, aquaculture, and biological treatment.
